IVRESS/Conveyor
IVRESS/Conveyor is a time-accurate finite element / multibody dynamics tool for predicting the dynamic response of conveyor belts. IVRESS/Conveyor allows conveyor belt designers to quickly build, analyze, and visualize conveyors in an intuitive object-oriented graphical design environment. IVRESS/Conveyor can be used to model conveyor belt systems used in industries such as mining, food, pharmaceutical, manufacturing, warehousing, recycling, and baggage handling.
IVRESS/Conveyor Features
-
Time-accurate explicit time integration finite element / multibody dynamics solver.
-
Accurate modeling of belt-pulley frictional contact using an asperity based Coulomb friction model.
-
Template/spreadsheet (Excel) user-friendly interface.
-
Supports flat and troughed conveyor belts.
-
Belts can be modeled using thin beam, thick beam, shell, and/or brick finite elements.
-
Supports rotational and linear belt tensioners.
-
Objects can be placed on the conveyor.
-

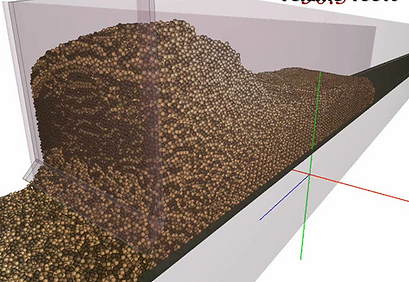

Bulk-material granular can modeled using the Discrete Element Method (DEM) and placed on the conveyor.
-
Prediction of dynamic response quantities including:
-
Pulley forces.
-
Pulley angular velocities and torque.
-
Span tensions.
-
Span transverse vibrations.
-
Belt-pulley slip.
-
Belt-pulley normal and tangential force distribution.
-
Tension arm motion.
-
-
Typical simulation scenarios.
-
Conveyor belt startup and shutdown.
-
Steady-state operation at any speed or a range of speeds for studying the system natural frequencies.
-
Introduction/removal of a disturbance such as heavy material.
-
Acceleration/deceleration of the conveyor.
-
Bulk material leveling gates.
-
